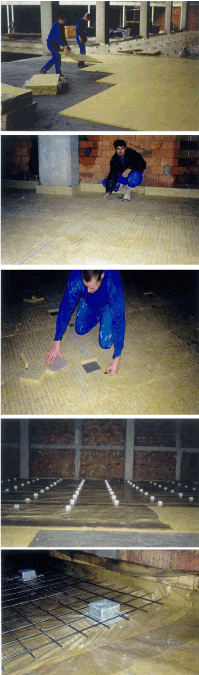

The boxes with reinforcement
Ready for jacking
Jacking up the slab
|
|

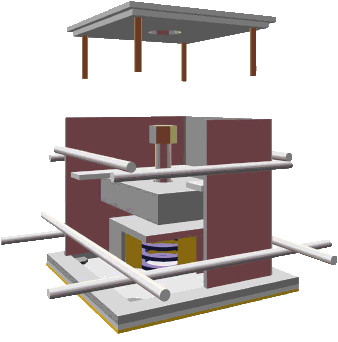

Jack-Up Floating Floor System guarantees acoustic de-coupling of floating floors with sping and elastomer isolator performances ranging from 3-7Hz. Due to the unique design the system allows for the bearings to be fully replaceable.
The system can be designed to take heavy loads and can be jacked up before or after these loads are applied. Installation

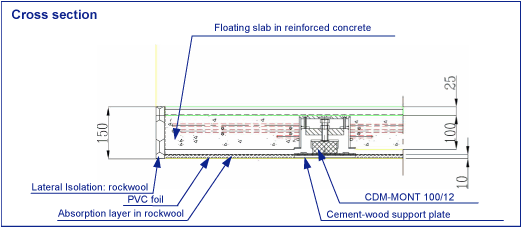

The system allows three standard concrete slab thicknesses, 100mm, 150mm and 200mm (other thicknesses available on request), and also any air void beneath the slab.
|
|
