CDM damping pad

Principle drawing

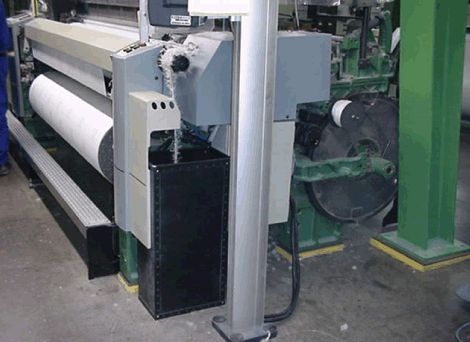

Weaving looms and tufting machines generate a large amount of vibration and structure-borne noise which is transmitted to the environment via the floor; CDM damping pads considerably reduce the structure-borne component and can therefore be used as‘soundstop’.

The advantages of using CDM-LOOM-CONTACT are:
1 easy to install: locate directly under the machine support
2 improves working environment
3 extends lifetime of the support structure
4 good ageing resistance

Required data for design:
1 Pipe contact temperature
2 Pipe diameter and thickness
3 Number of pipes to be isolated
4 Nature and orientation of supporting surface
5 Excitation frequency spectrum (if available)
