CDM-DFPA/DFSA

view after installation

The CDM-DFPA is a Discrete Pad / Strip Floating Slab Track vibration isolation system. The system is based on the principle of a concrete floating trackbed on discrete resilient bearings. The vibration isolation performance can be tuned by changing the stiffness of the elastic material, by changing the suspended mass and by changing the stiffness of the supporting structure.

Lateral isolation　　Resilient pads　　　　　　　 Formwork panel

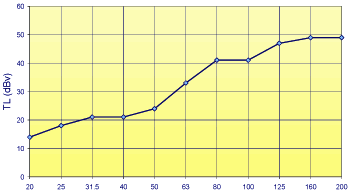

Transmission Loss TL = -20log(A/B)
(test info from an existing site)

frequency (Hz)

1 The CDM-DFPA system achieves insertion losses > 20 dBV in the predominant frequency range (31.5-125 Hz)

2 The CDM-DFPA system offers a high level of control and flexibility over the dynamic and static behaviour of the track. It is totally adaptable to the site specific charateristics and performance requirements

3 The CDM-DFPA can be used for any railtype / track system

4 Straightforward installation
