The CDM-QR resilient wall fixing enables dry wall systems to be mechanically connected (e.g. for practical or stability reasons), but without transmitting audible energy
1 Maximises sound insulation
2 Easy-to-install

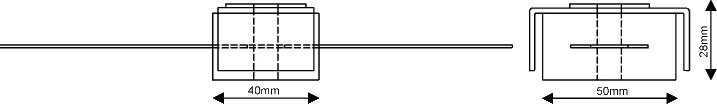

3 For voids from 40 to 60mm
The patented system applies a precompression force of approx. 500N onto the standard plasterboard fixation strip in galvasteel. At that moment the metal C-channel touches the structural wall behind (via its legs).
When used in combination with CDMISO- STRIP under the base and along the perimeter of the light wall system, a complete acoustical decoupling is realized.
The system offers a cost-effective and easy-to-install solution, along with the acoustical performance of a fully independent plasterboard wall system |
