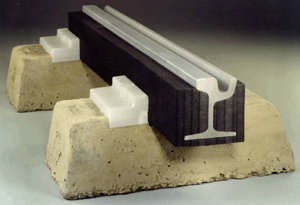

1. CDM-DPHI-E is a specially designed vibration isolation system for embedded tracks
2. Minimises noise radiated from the track
3. Excellent solution for improving the insertion loss performance of existing tracks
4. Designed to ensure insertion losses between 6 and 12 dBV (in the predominant excitation frequency area) compared to the classic non - isolated track
5. Solves stray current issues
6. Straightforward installation
7. The system system can be designed to accommodate site specific characteristics and performance requirements
Flange-way sealing sections in PE100
Protection hoods in polyamide for the fastenings
tie - bar isolation in PE40
A double flapped CDM-DPHI flapped rail pad, consisting of a high resilient pad (thickness 5-10 mm) and flaps (<3mm).

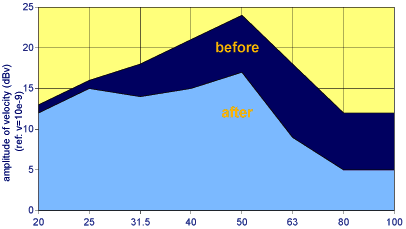

test info from an existing site: 1/3 octave spectrum (Hz)
1/3 octave spectrum (Hz)
