1. Initial rail support
2. Pour concrete to underside of fixing
3. Install CDM-SRS railstrip beneath rail
4. Install CDM-FLEXIWEB cladding and fixing covers
5. Install concrete and road finish
CDM-COMFOTRACK is a specially designed vibration isolation system for embedded tracks that are continuously supported
1 Minimises noise radiated from the track
2 Excellent solution for improving the insertion loss performance of existing tracks
3 Designed to ensure insertion losses between 6 and 12 dBv (in the predominant excitation frequency area) compared to the classic non - isolated track
4 Solves stray current issues
5 Straightforward installation
6 The system system can be designed to accommodate site specific characteristics and performance requirement
CDM-FLEXIWEB, rail web chambers in resin-bonded rubber, prefabricated and shaped according to the railtype.
CDM resilient railstrips, to provide vibration and structureborne isolation

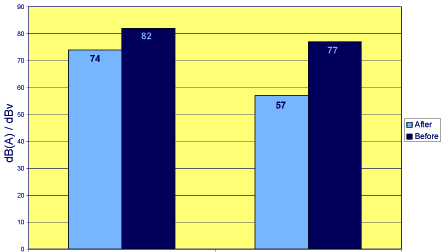

test info from an existing site:
noise¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ vibration
