CDM-COCONTRACK? has the following advantages over standard ballasted track:

1 Extremely low re-radiated noise levels from the track (>6dB reduction)

2 Important decrease of structure-borne vibration levels (insertion losses up to 15 dBV)

3 Multi - modal traffic use of the track

4 Elimination of rail-corrugations

5 Fasteners are spaced at 1.2m centres instead of the standard 0.6m spacings, therefore only half the number of fixings are required

6 The system is totally adaptable to the project specific characteristics (e.g. track curves)

CDM-FLEXIWEB
Rail-web-chambers in resin-bonded rubber, prefabricated and shaped according to the railtype.

CDM-BISTRIPS
To provide the vibration isolation and structureborne noise isolation, and to absorb the tolerances of the support surface

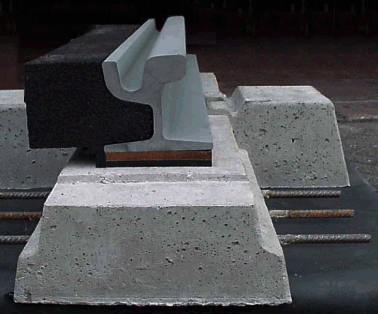

CDM-COCON Sleeper
A novel pre-fabricated H-shaped concrete sleeper that has an integrated track alignment system. The sleeper system provides a continuous support surface for the rails
